Recently, LED Driver and lighting manufacturers have received update information form UL about ANSI UL 8750-2018 Light Emitting Diode (LED) Equipment for Use in Lighting Products mandatory notification on November 2, 2020, requiring subsequent products to apply for certification in accordance with the new version of the standard. , Products that have been certified need to update the file as soon as possible, otherwise the UL mark will not be used after November 2, 2020

ANSI /UL8750:2015(Ed.2) Rev. August 22,2018 update requirements

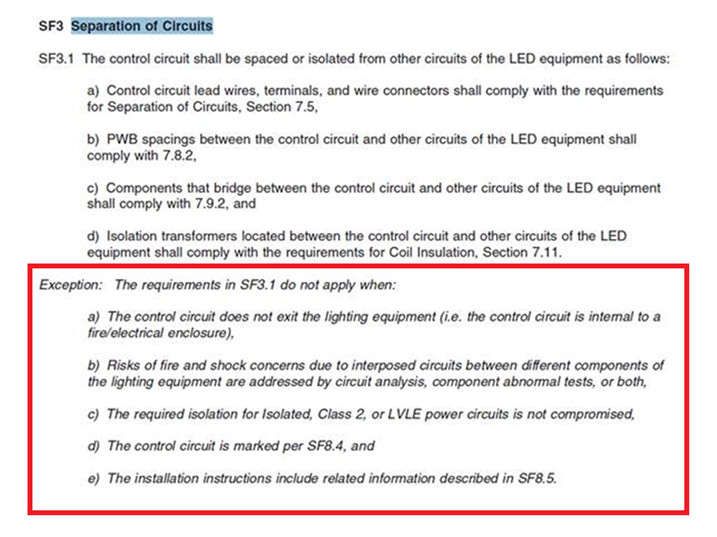

ANSI /UL8750:2015(Ed.2) Rev. August 22,2018 Supplement SF  will be updated from 2020-05-01. The main reason is that the control line needs to be isolated from other lines or meet the exception a-e. Please see the following standard text

Requirement for manual and marking label

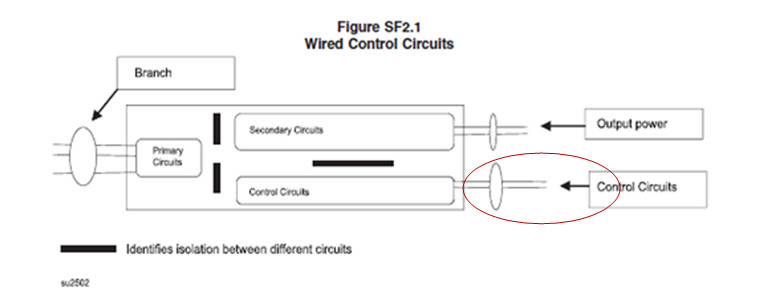

For the LED control circuit shown below, if the following conditions are met, the isolation circuit can be removed.

(a) If the control circuit is not exposed, it is covered by a fire/shock proof enclosure.

(b) The control circuit has been proved to be safe from fire and electric shock by abnormal test.

(c) The control circuit shall not affect the isolation of the primary circuit or other secondary circuits;

(d) Warning slogan of SF8.4 shall be printed on the control circuit:

"Notice: This circuits not isolated-see installation instruction”，

(e) Add the description of SF8.5 to the installation manual.

How to do for the LED driver and luminaire manufacturer?

Influence: It is valid for both power supply manufacturers and lamp manufacturers. For products that have been successfully listed, 2020-05-01 has not been updated to a new version. The UL website will cancel the listing and will affect the shipment of power supply manufacturers. For lamp manufacturers, you need to pay attention to the company UL listed information for purchasing power products. If the power supply is unlisted, you need to wait for the power supply to be re-listed before it can be shipped normally.

Countermeasures：If the power supply meets the requirements of UL 8750 Supplement SF3.1 exception ac, you only need to update the label and instructions according to Supplement SF3.1 exception de. If the power supply does not meet the requirements of UL 8750 Supplement SF3.1 exception ac, you need to re-evaluate the control The circuit's fire protection and electric shock requirements, and simultaneously meet the requirements of Supplement SF3.1 exception d-e

Example1
 A luminaire manufacturer uses the LED Driver of B manufacturer. The LED Driver has independent certification. Does the finished lamp product need to be re-certified?

Answer:
 If the LED Driver only needs to update the warning signs and instructions, and does not need to change the circuit, the luminaire manufacturer can wait for the LED Driver manufacturer to update the report and then ship again. The luminaire manufacturer does not need to re-certify the luminaire; , otherwise,The luminaire also needs to be re-certified.

Example2

The LED Driver used by A luminaire manufacturers is a un-listed certified LED Driver. What should be done with this standard update?

Answer:
 If the LED Driver is a un-listed certified power supply, a standard update is required along with the luminaire report.

BACL Suggestion:

If you encounter problems and doubts in the process of product design and development, please feel free to contact us or provide samples for comprehensive structural inspection to ensure that your products fully meet the requirements of the standard and successfully export to North America and Europe!
