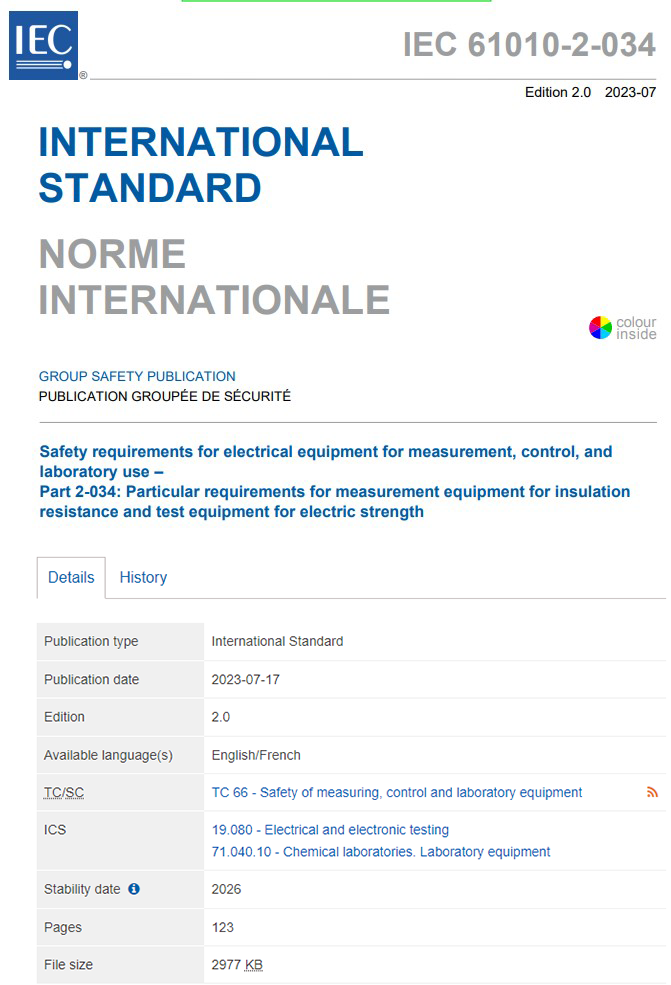

The International Electrotechnical Commission (IEC) issued a new version of the standard IEC 61010-2-034:2023《Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-034: Particular requirements for measurement equipment for insulation resistance and test equipment for electric strength》on 2023-07-17.

See the link to the IEC official website for details:

https://webstore.iec.ch/publication/70271

IEC 61010-2-034:2023 specifies safety requirements to equipment for measuring insulation resistance and to equipment for testing electric strength which have an output voltage exceeding 50 V a.c. or 120 V d.c. This document also applies to combined measuring equipment which has an insulation resistance measurement function or an electric strength test measurement function.

SIGNIFICANT TECHNICAL CHANGES

This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:

a)     in 1.2.1, requirements for protection against hazards which could occur from reading a voltage have been added to the scope;

b)     Clause 2, all normative references have been dated; new normative references have been added;

c)      in 4.3.2.5, requirements for power supply have been modified;

d)     in 4.3.2.6, requirements for inputs/outputs have been modified;

e)     in 5.1.5.101.2, minimum ratings for voltage of measuring terminals are required;

f)      in 5.4.2, new ratings for documentation have been added;

g)     in 5.4.4, new instructions for operation have been added;

h)     in 5.101.1, hazard indicators shall be functional in normal condition and in single fault condition;

i)       in 6.6.101.1, insulating material of group I may be allowed for determination of creepage distances of measuring circuit terminals;

j)       in 6.6.101.2, Clearances and creepage distances above 1 000 V a.c. and 1 500 V d.c. for measuring circuit terminals in unmated position have been defined;

k)     in 6.6.101.3, requirements for measuring circuit terminals in partially mated position have been specified;

l)       in 6.6.101.4, requirements for measuring circuit terminals in mated position have been specified;

m)    Subclause 6.102 replaces 6.9.103 and has been rephrased;

n)     new Subclause 9.101 to consider the protection of measuring circuits against the spread of fire and arc flash has been added. Table 102 has been replaced by Table K.101;

o)     In 9.101.2, relocation of 101.3 of previous edition;

p)     In 9.101.3, relocation of 101.4 of previous edition, extension to measurement category II and reference to IEC 61000-4-5 for tests;

q)     in 9.101.4, requirements for measuring circuit terminals in mated position have been specified;

r)      in 9.101.5, relocation of K.103 of previous edition with numerous technical changes;

s)      in 14.101, relocation of 14.102. 14.101 of previous edition has been removed;

t)      in 101.3, relocation of 101.5 of previous edition, and more requirements added against hazard occurring from reading a voltage value;

u)     in K.2.1, another method for determination of clearances of secondary circuits is proposed;

v)      in K.3.2, new Table K.15 and Table K.16 for clearance calculation;

w)    in K.3.101, relocation of 6.9.104 of previous edition;

x)      in K.101.4.1, new Table K.103 and Table K.104 replace Table K.102, Table K.103 and Table K.104;

y)      in K.101.4, the subclause has been reviewed. Tables and tests for solid insulation have been modified. Table K.105 replaces Table K.9;

z)      Table K.101, replacement of Table K.106;

aa)   Clause K.4, redraft of the clause to propose a method for determination of Ut for circuits which reduce transient overvoltages;

bb)  Annex EE: addition of a new informative annex for determination of clearances for Table 101.

We will continue to pay attention to the update of global standards for you, provide you with accurate interpretation in a timely manner, respond to the standard upgrade as soon as possible, and escort your products to the international market smoothly!
