With the unification of the technical standards for mobile phone USB charging ports and charging protocols, more and more socket products have integrated USB power functions. Therefore, UKCA, in response to this situation, has set the socket safety standard BS 1363- 2:2016+A1:2018 and BS 1363-3:2016 A1:2018 to tighten the corresponding requirements.

USB circuits incorporated in a socket‑outlet shall conform to the requirements of:

• USB Power standard: BS EN 60950 1:2006+A2:2013; or BS EN 62368-1:2014; or BS EN 61558-2-16:2009+A1:2013 and BS EN 61558-2-6:2009；

• USB Battery Charging Specification: BS EN 62680-1-1:2015。

Socket products have stricter requirements on the integrated USB power supply structure

USB circuits of Overvoltage Category II can be used where additional overvoltage protection is provided within the adaptor, otherwise the USB circuit shall be designed and constructed to conform to the requirements of Overvoltage Category III.

Eg:The clearance and creepage distance in the standardEN 62368-1:2014 will beincreased, As a result, the design of a compactsocket integrated with a USB power supply will be more difficult

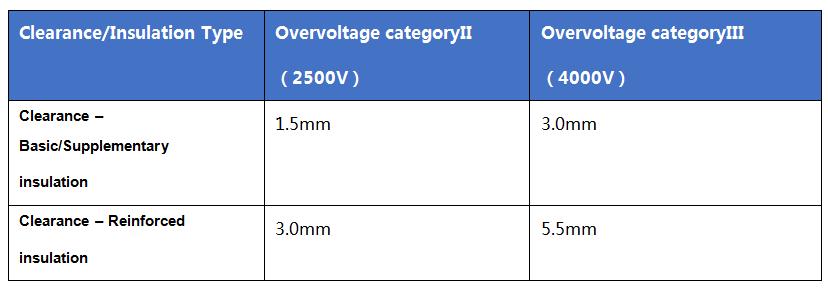

clearance and creepage distanceSpecification table according to BS EN 62368‑1:2014 Table13and Table 15：

Creepage distance requirements will be increased accordingly.

Therefore, BACL technical experts remind that if exporting to the UK for UKCA certified socket products, these special attentions should be paid to the structural design requirements here. If you have any questions, please feel free to contact us. Thanks!
